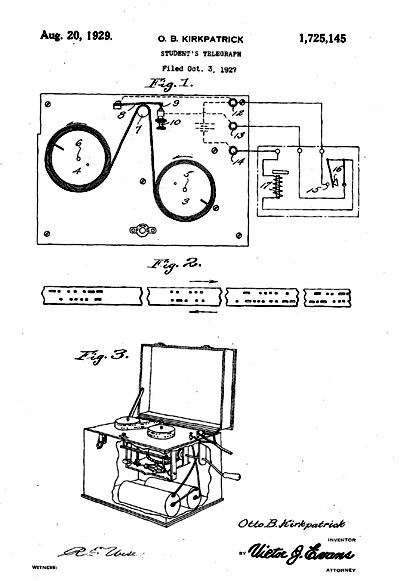

Patent set Patent



Instruct

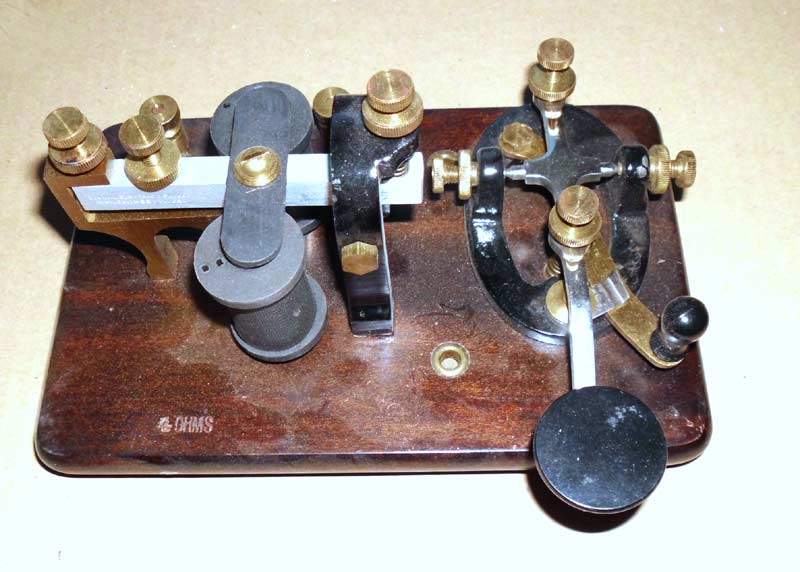

Buzzer Buzzer

Oszi oszi

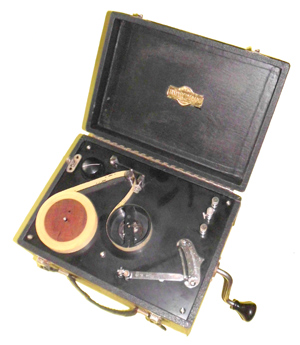

motor “Instructograph” Morse Code Training Device



The Instructograph is an early electromechanical playback device used for learning Continental or American Morse code. Several different models were manufactured by the Chicago-based Instructograph Co. from the 1920s all the way into the 1980s. Learning to receive code is generally a more difficult task than learning to send, and this portable device would allow the student to practice code recognition without the aid of an instructor or fellow student.

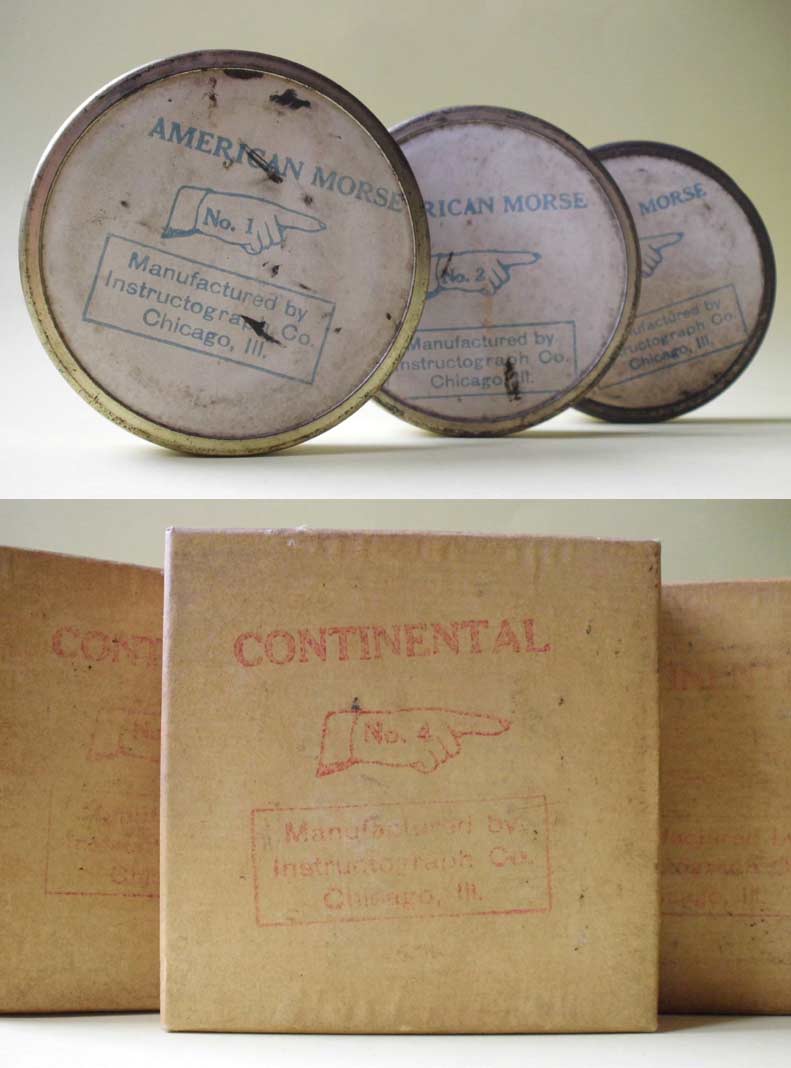

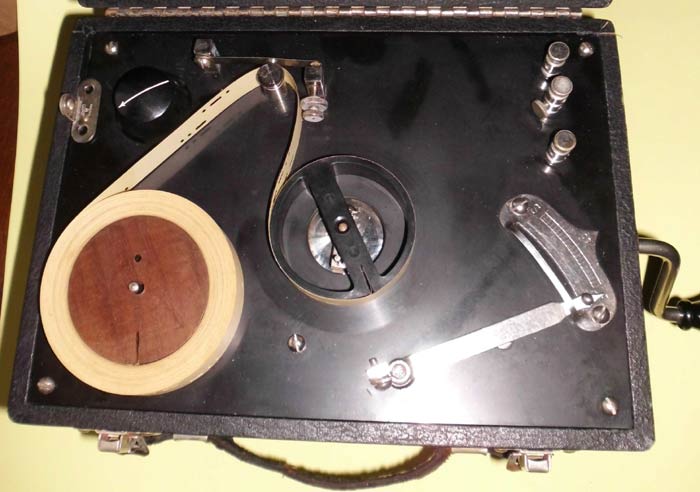

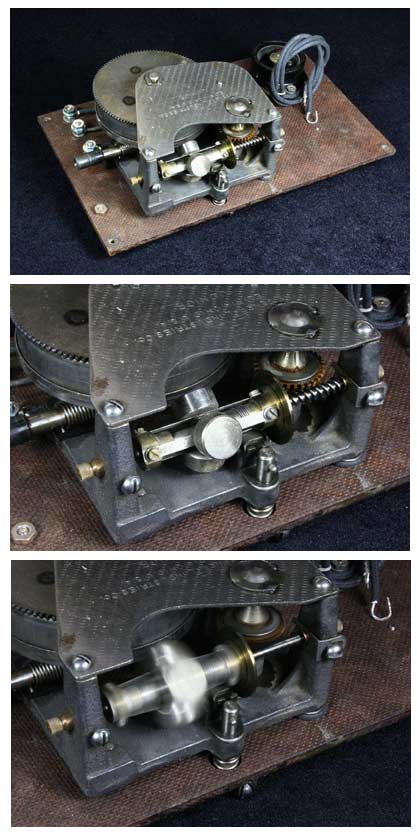

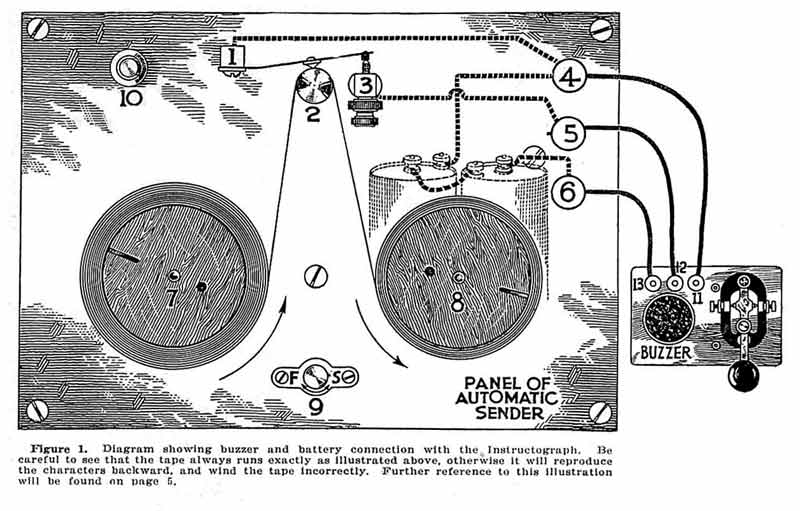

Reels of oil-impregnated paper tape perforated with dots and dashes were used to actuate a set of electrical contacts that would in turn operate an external railroad-type sounder, a buzzer or oscillator (for tone), or a light for optical communication. The earliest versions of the Instructograph used a wind-up phonograph motor with a variable speed governor to power the rotation of the tape reels. Other than the mechanical motor, the only other elements in the device consisted of a set of contacts, a battery, and a rheostat to control the current to the sounder or buzzer.

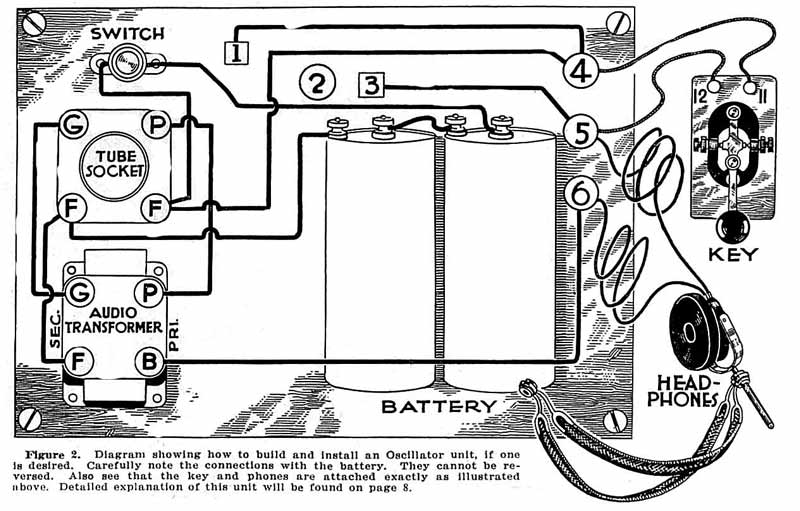

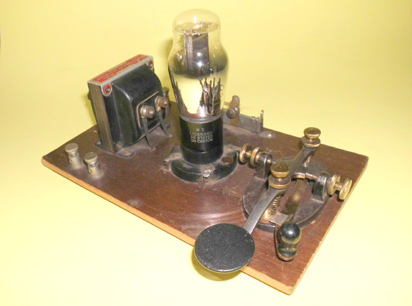

Later versions used a variable speed electric motor for the tape drive, and some actually included an on-board electronic oscillator that would produce an adjustable audio tone. A full set of training lessons consisted of ten tapes, ranging from the most basic sending tape with practice gaps between characters to a fully punctuated newspaper article. Intermediate lesson tapes concentrated on groups of unrelated characters, then words,eventually moving on to practical applications such as the transmission and reception of commonly used railroad messages. The tapes had perforations along both edges so that when one side was finished playing the reel could be flipped over to continue the lesson and rewind it at the same time.
